Partition Systems
ECO retail partition systems are your simple, flexible modular approach to managing space in your store. Quick to set up, you can transform areas to meet seasonal demands, create restricted zones, or guide customers through their journey.
Partition system with acrylic panel or wire grate
Standard Uprights
Used primarily in discount stores, they offer an effective alternative to pipe barriers, and with the increase in attempted thefts, they have become necessary in all areas of stores far from those normally manned by cashiers or information staff. They are also effective when used to make visible and protect those areas typically used for promotions and special offers in large hypermarkets.
Available heights:
2,000 mm
3,000 mm
Finishing material (upright): chromed or painted steel (1)
(1) : For painted finish, specify the RAL code when requesting a quote.
Diameter: 4.8 mm
Thickness: 1.5 mm
Note:
without clips;
For composition specifications, download the technical data sheet.
Grille partition panel
Available sizes:
950 x 950 mm (LxH)
950 x 1,500 mm (LxH)
950 x 1,900 mm (LxH)
cut to size
Finishing material : chrome grille with 50 mm pitch
Grill thickness: 6 mm
Acrylic Partition Panel
Available sizes:
950 x 400 mm (LxH)
950 x 950 mm (LxH)
950 x 1,500 mm (LxH)
950 x 1,900 mm (LxH)
cut to size
Finishing material : Transparent acrylic
Panel thickness: 6 mm
Uprights with fixing clamps: 2,000 mm - 4 ways
Used primarily in discount stores, they offer an effective alternative to pipe barriers, and with the increase in attempted thefts, they have become necessary in all areas of stores far from those normally manned by cashiers or information staff. They are also effective when used to make visible and protect those areas typically used for promotions and special offers in large hypermarkets.
Clip arrangement:
4 clamps
8 180° clamps
8 90° clamps
12 “T” clamps
Finishing material (upright): chromed or painted steel (1)
(1) : For painted finish, specify the RAL code when requesting a quote.
Finishing material (clamps): plastic with black, grey RAL 7035, chrome or painted finish (1)
(1) : For painted finish, specify the RAL code when requesting a quote.
Diameter: 4.8 mm
Thickness: 1.5 mm
Note: For composition specifications, download the technical data sheet.
Uprights with fixing clamps: 1,600 mm - 3 ways
Used primarily in discount stores, they offer an effective alternative to pipe barriers, and with the increase in attempted thefts, they have become necessary in all areas of stores far from those normally manned by cashiers or information staff. They are also effective when used to make visible and protect those areas typically used for promotions and special offers in large hypermarkets.
Clip arrangement:
3 clamps
6 180° clamps
6 90° clamps
9 “T” clamps
Finishing material (upright): chromed or painted steel (1)
(1) : For painted finish, specify the RAL code when requesting a quote.
Finishing material (clamps): plastic with black, grey RAL 7035, chrome or painted finish (1)
(1) : For painted finish, specify the RAL code when requesting a quote.
Diameter: 4.8 mm
Thickness: 1.5 mm
Note: For composition specifications, download the technical data sheet.
Uprights with fixing clamps: 1,120 mm - 2 ways
Used primarily in discount stores, they offer an effective alternative to pipe barriers, and with the increase in attempted thefts, they have become necessary in all areas of stores far from those normally manned by cashiers or information staff. They are also effective when used to make visible and protect those areas typically used for promotions and special offers in large hypermarkets.
Clip arrangement:
2 clamps
4 180° clamps
4 90° clamps
6 “T” clamps
Finishing material (upright): chromed or painted steel (1)
(1) : For painted finish, specify the RAL code when requesting a quote.
Finishing material (clamps): plastic with black, grey RAL 7035, chrome or painted finish (1)
(1) : For painted finish, specify the RAL code when requesting a quote.
Diameter: 4.8 mm
Thickness: 1.5 mm
Note: For composition specifications, download the technical data sheet.
Clamps
Available models:
chromed clamp for upright
chrome-plated panel connection clamp
Finishing material : chromed steel
Compatible with: 48mm diameter uprights
Partition system with reinforced glass panel
Reinforced glass panel
Available sizes:
480 x 865 mm (LxH)
980 x 865 mm (LxH)
Finishing material : reinforced glass
Panel thickness: 3+3R mm

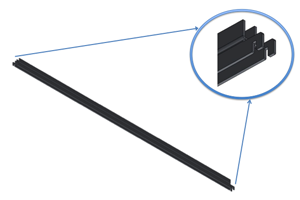

Double U intermediate profile
Available lengths:
505 mm (for a distance between uprights of 535 mm)
1,005 mm (for a distance between uprights of 1,035 mm)
Finishing material : AISI 304 stainless steel

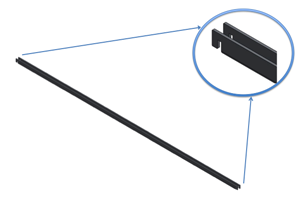

U-shaped lower profile
Available lengths:
505 mm (for a distance between uprights of 535 mm)
1,005 mm (for a distance between uprights of 1,035 mm)
Finishing material : AISI 304 stainless steel
U-shaped upper profile
Available lengths:
505 mm (for a distance between uprights of 535 mm)
1,005 mm (for a distance between uprights of 1,035 mm)
Finishing material : AISI 304 stainless steel
Uprights with inserts for U-profiles: 1,930 mm - 3-way
The reinforced glass panels close completely without leaving gaps, effectively countering theft attempts at the point of sale.
Insert arrangement: see figure on the side
Material and finish (upright): AISI 304 stainless steel
Diameter: 48 mm
Thickness: 1.5 mm
Note: For composition specifications, download the technical data sheet.
Carter for Partition Systems
T-junction kit
Contains:
4 stainless steel linear joints
4 stainless steel “L” joints
2 flat stainless steel “L” joints
22 stainless steel M6x16 TBEI screws

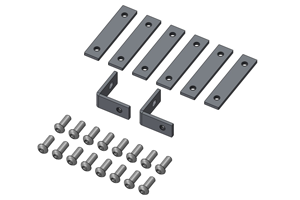

Corner joint kit
Contains:
6 stainless steel linear joints
2 stainless steel “L” joints
16 stainless steel M6x16 TBEI screws

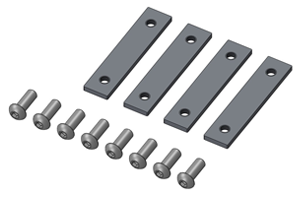

Linear joint kit
Contains
4 stainless steel linear joints
8 stainless steel M6x16 TBEI screws
Terminal piece
Dimensions: 146 x 145.5 x 32 mm (WxHxD)
Finishing material : AISI 304 stainless steel
Note: Includes mounting accessories
Connecting Piece
Dimensions:
535 x 150 x 150 mm (WxHxD)
1,035 x 150 x 150 mm (WxHxD)
Finishing material : AISI 304 stainless steel
Note: Does not include terminal element
Central Piece
Dimensions: 150 x 150 x 150 mm (WxHxD)
Finishing material : AISI 304 stainless steel
Note: Includes end cap
