Doors and Leafs

With ECo doors and leafs you can change the entrance welcome to your store easily and quickly. The perfect repalcement for existing doors and leafs, you can choose from acrylic and metal systems to respond to changes in usage levels or other needs. Plus, ECo leafs can also be purchased with signage to help your customers understand their journey.

Plastic Doors

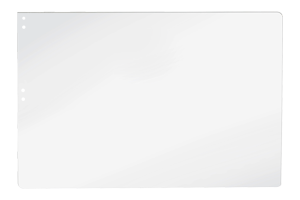

Rectangular door leaf in transparent polycarbonate

Available in sizes from:
800 x 600 mm (LxH)
900 x 600 mm (LxH)
Complete with: adhesive tables (→/x)
Finishing material : Transparent polycarbonate
Panel thickness: 10 mm
Connection centre distance: 250 mm
Compatible with: OverGate

Conversion kit for tubular to plastic swing door

Dimensions: 66.9 x 60 x 30 (WxHxD)
Complete with: fixing screws
Finishing material : mirror-polished chrome-plated steel
Compatible with: OverGate

Polycarbonate door for Panther cash register exit

Dimensions:
500 x 1,340 mm (LxH)
600 x 1,340 mm (LxH)
700 x 1,340 mm (LxH)
800 x 1,340 mm (LxH)
900 x 1,340 mm (LxH)
Complete with: adhesive tables
Finishing material : Polycarbonate
Panel thickness: 8 mm
Connection centre distance: 720 mm
Compatible with: Panther Speaker Output

Acrylic door knocker with RGB LED lighting

Available in lengths from:
600 mm
700 mm
900 mm
Complete with:
24V RGB LED lighting managed via the OverGate 4.0 gate motherboard
adhesive tables (→/x)
Finishing material : Transparent acrylic
Panel thickness: 13 mm
Connection centre distance: 250 mm
Compatible with: OverGate

Transparent polycarbonate door leaf

Available in lengths from:
600 mm
700 mm
800 mm
900 mm
Complete with: adhesive tables (→/x)
Finishing material : Transparent polycarbonate
Panel thickness: 10 mm
Connection centre distance: 250 mm
Compatible with: OverGate

Tubular steel doors

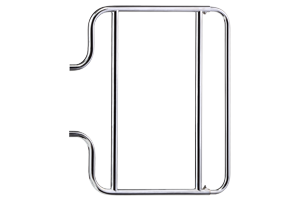

BIG extendable tubular door leaf

Length range: from 700 to 1,100 mm
Finishing material : chromed or painted steel (1)
(1) : For painted finish, specify the RAL code when requesting a quote.
Tubular striker diameter: 28 mm
Centre distance between connections: 250 mm
Compatible with:
Emergency exit (requires passage width > 1,200 mm)
Cashier’s checkout

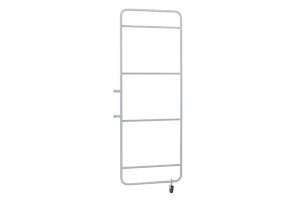

Door with painted steel frame

Available in sizes from:
800 x 1,880 mm (LxH)
900 x 1,880 mm (LxH)
1,000 x 1,880 mm (LxH)
1,100 x 1,880 mm (LxH)
Includes: Honeycomb polycarbonate panel
Finishing material : RAL 7035 painted metal
Tubular diameter: 28 mm
Centre distance between attachments: 250 mm
Compatible with: Safety Outputs

STD extendable tubular door leaf

Length range: from 700 to 1,100 mm
Finishing material : chromed or painted steel (1)
(1) : For painted finish, specify the RAL code when requesting a quote.
Tubular striker diameter: 28 mm
Centre distance between connections: 250 mm
Compatible with:
OverGate
Mechanical door
Emergency exit (requires passage width > 1,200 mm)
Cashier’s checkout

Standard tubular door leaf

Available in lengths from:
700 mm
900 mm
1,150 mm
Finishing material : chromed or painted steel (1)
(1) : For painted finish, specify the RAL code when requesting a quote.
Tubular striker diameter: 28 mm
Centre distance between connections: 250 mm
Compatible with:
OverGate
B-Easy ( excluding length 1,150 mm )
Mechanical door
Emergency exit (requires passage width > 1,200 mm)
Cashier’s checkout

Tubular aluminum doors

Tubular “rotated P” door leaf

Available in lengths from: 950 mm
Finishing material : polished aluminum
Tubular striker diameter: 28 mm
Centre distance between connections: 250 mm
Compatible with: OverGate

Tubular aluminum door leaf

Available in lengths from: 1,200 mm
Finishing material : polished aluminum
Tubular striker diameter: 28 mm
Centre distance between connections: 250 mm
Compatible with: OverGate

Kit - Door with aluminum frame

Bumpers

Compatible with aluminum frame with length equal to:
650 mm
850 mm
1,050 mm
includes fixing elements.
Material and finish: white plastic
Profile height: 25 mm

Clear acrylic panel

Compatible with aluminum frame with length equal to:
650 mm
850 mm
1,050 mm
includes fixing accessories.
Material and finish: clear acrylic
Thickness: 3 mm

Honeycomb polycarbonate panel

Compatible with aluminum frame with length equal to:
650 mm
850 mm
1,050 mm
includes fixing accessories.
Material and finish: honeycomb polycarbonate
Thickness: 4 mm

Aluminum frame

Height: 1,080 mm
Available in lengths from:
650 mm
850 mm
1,050 mm
Finishing material : chromed or painted aluminium (1)
(1) For painted finish, specify the RAL code when requesting a quote.
Tubular diameter: 28 mm
Centre distance between attachments: 250 mm
Compatible with:
OverGate (2)
(2) Specify the opening direction
